אופני הרים Marin Alpine Trail 1

שתפו עם חברים

    • אופני האנדורו החדשים והכי ניתנים לכיוון גאומטרייה אישית ממתינים לכם כדי לקרוע את השבילים ! ביקורות מטורפות בכל העולם,איבזור קצה ומחיר ללא תחרות !
    • שילדת אלומיניום חדשה לחלוטין LT2 סופר חזקה ומוגנת עם אפשרות שינוי גיאומטריה להתאמה מוחלטת לסגנון הרכיבה שלכם :DH מהיר,אנדורו טכני,סלעים או DIRT JUMP
    • מערכת הילוכים SHIMANO DEORE 12 ,ברקסים TRP Slate EVO, 4-Piston עוצמתיים, גלגלי טיובלס וצמיגי VEE WCE SNAP 2.6 יבטיחו שתסיימו כל מסלול עם חיוך
    • בולמי זעזועים מצוינים FOX 36 קדמי 170מ"מ FOX FLOAT אחורי 160 מ"מ ישאירו אותכם על השביל הכי משובש בלי בעייה
  •  שילדה
    All New Series 4 6061 Aluminum Frame, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS
  •  מזלג קדמי
    Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110×10 Kabolt, 44mm Offset
  •  בולם אחורי
    Fox Float Performance, 205×65, 30xM8 Lower Hardware, Custom Tune
  •  ידיות הילוכים
    Shimano Deore, 12-Speed, SL-6100-IR
  •  מעביר אחורי
    Shimano Deore, 12-Speed, SGS
  •  קראנק
    FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
  •  ציר מרכזי
    Mego EXO 73mm BSA
  •  קסטה
    Shimano, Deore M6100 12-Speed, 10-51T
  •  שרשרת
    KMC X-12 Silver and Black
  •  מעצורים
    TRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor
  •  גלגלים
    Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible + Shimano HB-MT410B
  •  צמיגים
    Vee Tire Flow Snap, 29×2.6" Front 27.5×2.5" Rear, Top 40 Compound, Enduro Core, 90 TPI, Tubeless Compatible
  •  אוכף
    Marin Speed Concept
  •  מוט אוכף
    TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
  •  כידון
    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  •  מוט כידון
    Marin 3D Forged Alloy, 35mm
  •  מיסבי היגוי
    FSA Custom Headset, Adjustable HTA Design
Marin Alpine Trail XR AXS rear triangle detail.

MULTITRAC 2 LT

MultiTrac 2 LT debuts on the aluminum-framed Alpine Trail alloy models. MultiTrac 2 LT shifts from seatstay pivots to chainstay pivots, ensuring that the suspension performance matches our design goals, which are not achievable using pivots located on the seatstay once travel exceeds 150mm. With MultiTrac 2 LT, the benefits of relocating the rear pivot points from the seatstay to the chainstay become apparent, as it reduces anti-rise, allowing for better chassis control while braking, more mid-stroke support, and better feel at bottom out.

Marin Alpine Trail chainstay flip chip detail.

ADJUSTABLE GEOMETRY

With the integrated flip chips, adjustable headset and an aftermarket 29” rear wheel, Alpine Trail aluminum riders can select 12 unique configurations to run their bikes. These configurations allow the best fine-tuning of chassis to trail conditions available. Flip chips are easy to reconfigure trailside and easily done using a 6mm hex wrench, require no additional parts, and incorporate laser-etched graphics that indicate the position of the chips. The stock 27.5” rear wheel can be swapped out for a 29” rear wheel (not included) if desired, along with changing the position of the seatstay flip chips. Furthermore, the flip chips located at the seatstay pivots alter the bottom bracket height and chainstay length (low BB/long CS setting = 345/442mm, high BB/short CS setting = 352/435mm) so that riders can perfectly dial their bike in to match the terrain they are looking to conquer.

Marin Alpine Trail Bear Box downtube storage.

Bear Box Downtube Storage

The all-new Alpine Trail aluminum models now feature our Bear Box integrated downtube storage, complete with a custom nylon bag with a weather-sealed zipper. The hatch door is secure and double-sealed, with bottle bosses. Keep your riding essentials safe and protected from the elements during your big ride.

Marin Alpine Trail XR AXS headtube detail.

ADJUSTABLE HEADTUBE ANGLE

Using our proprietary headset cups and inserts, the headtube angle on Alpine Trail aluminum models can be adjusted to +0.75° or -0.75° from the standard 63° position, giving the rider three options.

Marin Alpine Trail protection details.

PROTECTION

Chainstay and seatstays are protected with durable rubber guards that minimize noise and protect paint finishes, and integrated downtube guards helps deflect errant rocks, logs, or anything else riders may encounter on the trail.

Additionally, all aluminum frame models include a gasket around the cable exit hole reduces noise and prevents the brake hose and derailleur cable from marring the frame, and a mudflap positioned over the lower suspension pivot keeps spray and muck off the bearings. Cable ports are of an all-new design and keep the frame innards sealed. These ports use rubber membranes punctured during initial assembly and seal around the housing or hose once inserted. They will be available as a service part for when riders make changes to their components.

Marin Alpine Trail Carbon 2 profile.

29" F&R WHEELS

The Alpine Trail Carbon was built upon a 2 x 29" wheel setup, for the utmost in climbing efficiency and ability to roll over whatever lays before you on the trail.

Detail image of Alpine Trail Carbon tube

UNIDIRECTIONAL CARBON FIBER FRAME

Alpine Trail Carbon 1 and 2 models feature high modulus carbon fiber and monocoque construction to deliver the strongest and stiffest Alpine Trail to date.

Marin Alpine Trail one piece rocker link detail.

ONE PIECE ROCKER LINK

The Alpine Trail Carbon utilizes a stout one piece rocker link for maximum frame rigidity and suspension performance, while also allowing for bridgeless seatstays for enhanced clearance.

Marin Alpine Trail downtube protector detail.

DOWNTUBE PROTECTION

Alpine Trail Carbon models have an integrated and replaceable downtube protector to fend off inevitable log/rock/whatever strikes that may occur when out on a rowdy ride.

Marin Alpine Trail Carbon 2 front 3/4.

MODERN GEOMETRY

Alpine Trail Carbon models are designed with 63.5° headtube and 78° seattube angles that make the bike well-suited to both the descents as well as the climbs.

Marin Alpine Trail chainstay protector detail.

CHAINSTAY PROTECTION

The chainstays on Alpine Trail Carbon models feature an aggressive chainstay protector that not only protect your frame from chain slap, but also quiet the ride.

מידה

מתאים לגובה

M

168cm-178cm

L

178cm-185cm

טבלת המידות הינה המלצה בלבד, על סמך סטטיסטיקות גובה שבוצעו ע"י היצרן. טל"ח.

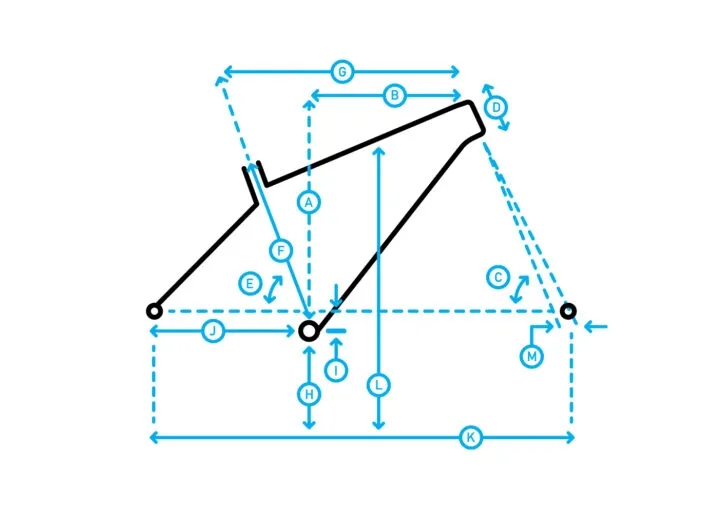

L

M

632

628

ASTACK

480

455

BREACH

63.5°

63.5°

CHEADTUBE ANGLE

115

110

DHEADTUBE LENGTH

78°

78°

ESEATTUBE ANGLE

425

400

FSEATTUBE LENGTH

615

589

GTOPTUBE EFFECTIVE

342

342

HBB HEIGHT

35

35

IBB DROP

430

430

JCHAINSTAY

1256

1229

KWHEELBASE

695

694

LSTANDOVER HEIGHT

44

44

MFORK OFFSET

30.9

30.9

SEATPOST DIAMETER

780

780

HANDLEBAR WIDTH

35

35

STEM LENGTH

170

170

CRANK LENGTH

כל המידע הרשום הינו במ"מ (למעט מעלות ° )





צבע

חום

מידה

L, M, S, XL

גודל גלגל

27.5

סוג

שיכוך מלא

מותג

Marin

למידע או הזמנה, התקשרו

14,990.00

לרכישה או בירור, התקשרו 054-788-8358
